How decades-old protocols, architectures and code lineages continue to shape today’s vehicles
 Modern vehicles are often described as computers on wheels, filled with technologies such as Automotive Ethernet, high-speed data networks, advanced driver assistance systems and software-defined functions. What is less obvious is just how much of this apparently modern technology rests on foundations that are several decades old. A 2026 vehicle may contain processors and network interfaces that would have seemed unimaginable when many of the underlying technologies were created. Yet some of the protocols, architectural concepts and even portions of the software lineage behind those systems can trace their origins back 30, 40 or even 50 years. That does not mean a modern ECU is simply running software written in the 1970s. The reality is more interesting. Modern automotive systems combine new hardware and software with technologies that have been continuously refined rather than discarded.
Automotive Ethernet: New Hardware, Old FoundationsAutomotive Ethernet is one of the clearest examples. Ethernet was developed at Xerox PARC in 1973 and formally adopted as the IEEE 802.3 standard in 1983. The original Ethernet network bears little physical resemblance to the Ethernet found in a modern vehicle. Early Ethernet used coaxial cable and shared network segments. Automotive standards such as 100BASE-T1 and 1000BASE-T1 use single twisted pairs, specialized transceivers and signaling designed specifically for the electrical, weight and reliability requirements of vehicles. But move above the physical layer and the family resemblance becomes much more obvious. Modern Automotive Ethernet still uses concepts such as Ethernet frames, MAC addresses and switched networks. It can carry familiar higher-layer networking protocols including IP, TCP and UDP. IEEE itself classifies 100BASE-T1 and 1000BASE-T1 as members of the same IEEE 802.3 Ethernet family that began decades earlier. In other words, the electrical signaling may be designed for a modern vehicle, but much of the architecture above it belongs to a technological family that predates electronic engine management.
TCP/IP Comes Along for the RideThe same thing happens at higher layers of the network. The foundations of TCP/IP were developed during the 1970s and early 1980s. IPv4 was formally specified in 1981, while UDP was defined in RFC 768 in August 1980. Those protocols were created for computer networks, not cars. Today, however, IP networking is increasingly part of vehicle architecture. Diagnostics, infotainment, telematics and communication between vehicle computers can all make use of technologies descended directly from conventional computer networking. UDP is particularly interesting because of its use with Automotive Ethernet applications. AUTOSAR's SOME/IP architecture, for example, supports communication over both UDP and TCP, choosing between them according to the application's requirements. A protocol standardized in 1980 therefore remains relevant inside some of the most advanced vehicles being produced more than four decades later.
CAN: Four Decades and Still WorkingController Area Network, better known as CAN, provides another example of technological longevity. Bosch began developing CAN during the 1980s, with the technology publicly introduced in 1986. Its purpose was revolutionary at the time: allow multiple electronic control units to communicate over a common network instead of requiring dedicated wiring between every device. Approximately 40 years later, CAN remains one of the fundamental communication technologies used in automobiles. Newer technologies have not necessarily replaced it. Instead, vehicles frequently contain several types of networks simultaneously. CAN FD increases CAN's capabilities while retaining much of its underlying architecture. Automotive Ethernet may be used where much greater bandwidth is required, while conventional CAN or CAN FD continues handling many control functions. The result is evolution rather than wholesale replacement.
LIN and the Survival of Simple NetworksLIN, or Local Interconnect Network, arrived much later than CAN, during the late 1990s. Yet it has already been part of automotive electronics for roughly a quarter century. LIN demonstrates another important principle of automotive engineering: newer and faster technology does not automatically make older technology obsolete. There is little reason to use a high-speed Ethernet connection for every mirror motor, seat switch, climate-control actuator or other inexpensive local device. LIN provides a comparatively simple and inexpensive solution for these applications. Modern vehicles therefore often use a hierarchy of networks rather than one universal communication system. Ethernet may handle extremely high-bandwidth communication. CAN FD may handle faster control networks. Conventional CAN may remain in other areas, while LIN continues operating relatively simple devices at the edges of the system. All of them can exist in the same vehicle.
OBD-II and Diagnostic TechnologyVehicle diagnostics provide another layer of technological history. Many of the concepts associated with OBD-II date to the 1990s, including standardized diagnostic connectors, emissions-related diagnostic trouble codes and standardized parameter identification. Those concepts did not disappear when vehicles adopted CAN, CAN FD or Ethernet. Instead, newer communication systems were placed underneath or alongside increasingly sophisticated diagnostic protocols. Modern vehicles may therefore support familiar OBD diagnostic concepts while also using technologies such as UDS and Diagnostics over Internet Protocol. The diagnostic functions themselves also show considerable continuity. Reading vehicle data, retrieving and clearing diagnostic trouble codes, resetting ECUs, accessing diagnostic sessions and commanding control functions are not fundamentally new ideas. Modern protocols greatly expand those capabilities, but many of the basic diagnostic concepts have existed for decades.
DoIP: Where Two Technology Families MeetDiagnostics over Internet Protocol, or DoIP, is perhaps one of the best demonstrations of how old and new technologies become intertwined. DoIP allows automotive diagnostic communication to operate using IP networking. The ISO 13400 standard specifically defines diagnostic communication using IP together with TCP and UDP. Consider what that means from a historical perspective. A technician connecting diagnostic equipment to a current vehicle through Automotive Ethernet may simultaneously be working with:
It looks like one modern system, but underneath it is a collection of technologies created during very different generations of computing.
Old Standards Are Not Necessarily Old SoftwareThere is an important distinction between legacy technology and legacy source code. Finding Ethernet, TCP, UDP or CAN in a modern vehicle does not mean that software written in 1980 or 1986 was simply copied into a new ECU. Usually it means that modern software implements standards, protocols and architectural concepts whose origins are that old. An analogy would be a new computer communicating using TCP. The processor, operating system and network driver may all be new even though the underlying communication protocol has decades of history. Automotive electronics work much the same way. But genuine source-code lineage can also survive for surprisingly long periods.
When Old Code Really Does SurviveAutomotive software has unusually long development and production lifetimes. OEMs and Tier-1 suppliers have strong incentives to reuse proven components rather than redesign every function whenever a new ECU generation is developed. Communication stacks, diagnostic libraries, bootloaders, mathematical functions, hardware abstraction layers and control algorithms may migrate from one project to another. A module introduced today may therefore contain code whose ancestry began many years earlier. That does not necessarily mean the exact original source code remains unchanged. It may have been modified, extended, ported to different processors, adapted to new operating systems and recompiled countless times. The important point is lineage. A function inside a current vehicle could represent the latest generation of software that has evolved continuously through several generations of vehicles and electronic hardware. This reuse is not inherently undesirable. Proven automotive software can represent years of testing, validation and field experience. Replacing mature code simply because it is old can introduce new problems without providing any meaningful benefit. At the same time, long software lineages can help explain why legacy assumptions, unusual behaviors and compatibility requirements sometimes remain visible in surprisingly modern systems.

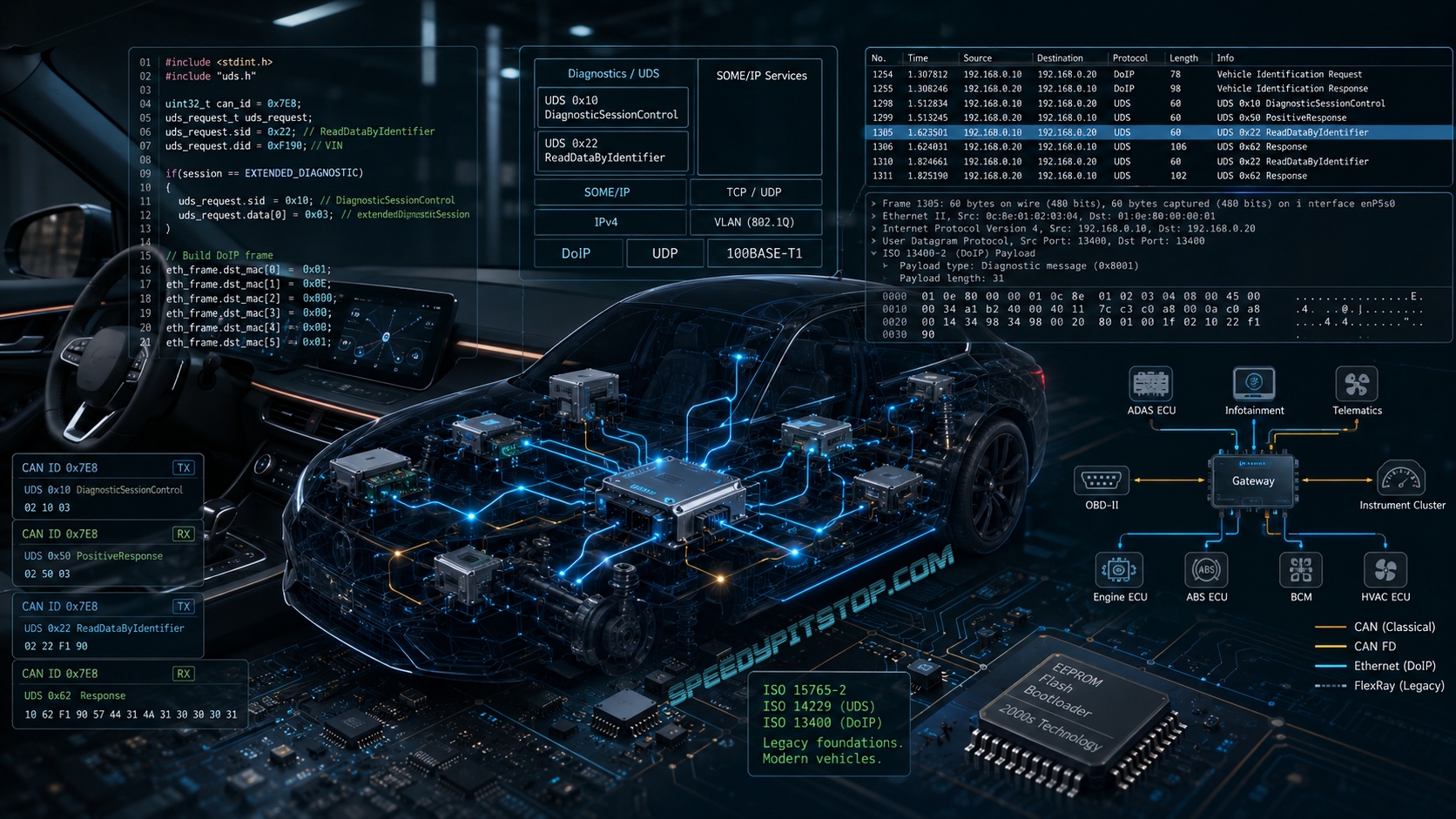

Fifty Years of Technology in One VehicleThe progression can be viewed roughly like this: **1973 Ethernet → 1980s TCP/IP and UDP → 1980s CAN → 1990s OBD-II and LIN → modern UDS → 2010s Automotive Ethernet and DoIP → today's increasingly software-defined vehicles** This is not a single development path. These technologies came from different industries and were created for different purposes. But over time they have become interconnected inside the modern automobile. The newest technology does not necessarily replace everything underneath it. More often, another layer is added.
What This Means for Modern Vehicle DiagnosticsThis technological history has practical consequences. When a technician connects a diagnostic computer through a 100BASE-T1 interface, captures traffic and analyzes communication between modern vehicle controllers, the technology may look completely different from the serial diagnostic systems of decades past. In many respects, it is. But it is not an entirely new technological universe. The Ethernet frames still belong to the Ethernet family. IP packets still follow Internet Protocol architecture. UDP is still UDP. Diagnostic services continue concepts developed through generations of automotive diagnostic systems. Even the newest vehicle may contain CAN and LIN networks operating alongside Ethernet, connected through gateways that translate and route information between systems developed decades apart. Modern automotive electronics are therefore better understood not as a technological reset, but as an accumulation of technological generations. Today's vehicles contain some of the newest computing technology ever placed in automobiles, but much of it succeeds precisely because it stands on protocols, software architectures and engineering concepts that have already spent decades proving themselves.
